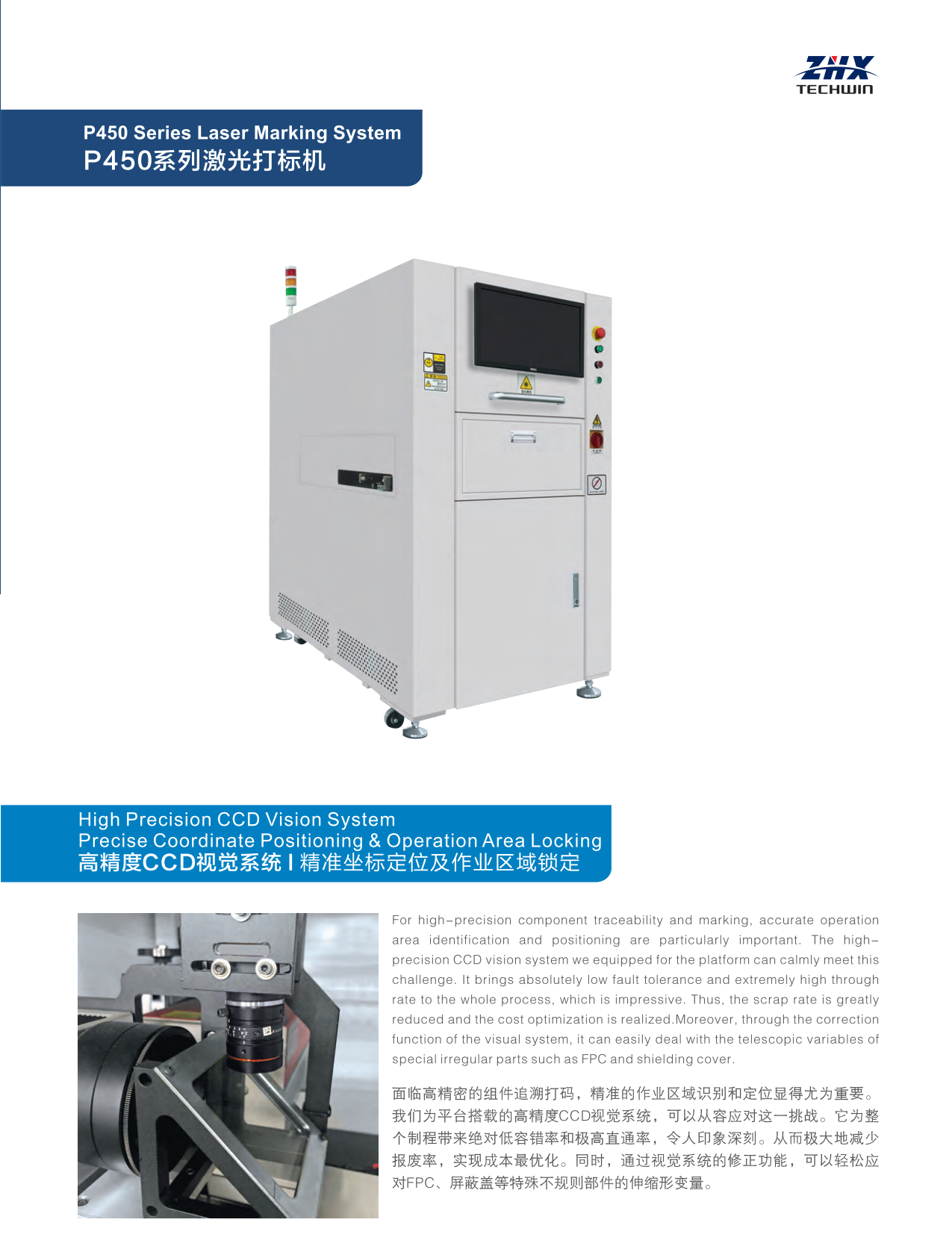

| ltem 项目 | P450 |
|---|---|

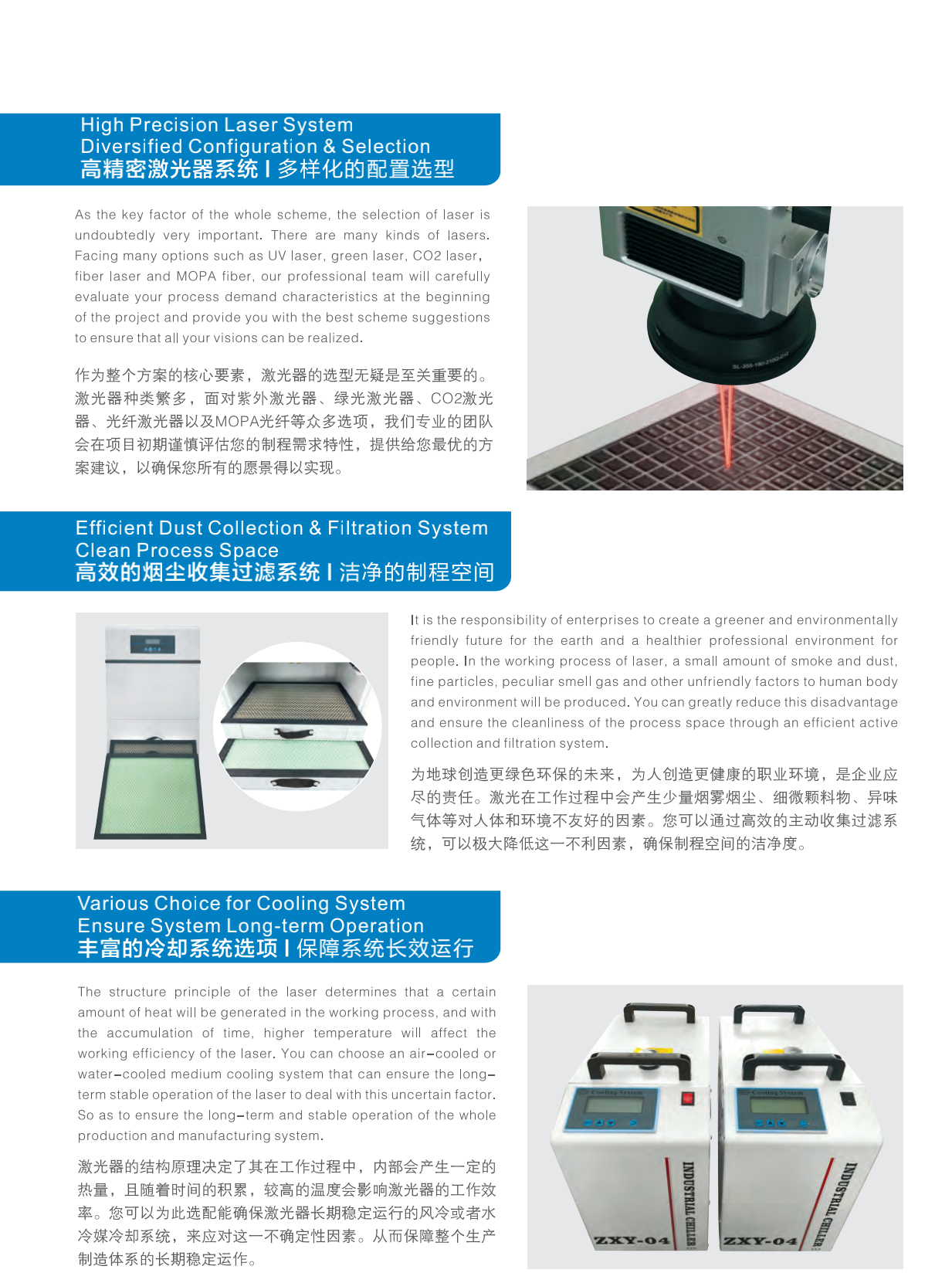

| Laser Type激光器类型 | UVlaser, green laser, fiber laser, CO2 laser (optional) 紫外激光器、绿光激光器、光纤激光器、CO2激光器可选 |
Marking Range 打标范围 | 0-150mmx150mm |
| Marking Speed 打标速度 | Max.9000mm/s (actual processing efficiency varies depending on laser type and power factor) 最高9000mm/s(实际加工效率因激光器类型和功率因素而异) |
Marking Precision打标精度 | up to +/-0.01mm±0.01mm可达 |
| PCB Size PCB尺寸 | 450mmx450mm |
PCB Board Height PCB板面高度 | A/B side support up to <30mm component height (support customization) A/B面支持最高<30mm的元器件高度(支持个性化定制) |
| Applicable Product适用产品 | PCB white/green/blue ink and others;Copper,aluminum, etc. PCB白色/绿色/蓝色等各种油墨;铜材、铝材等。 |
| Position System定位系统 | CCD+MARK positioning + product feature positioning CCD+MARK定位+产品特征定位 |
| Operating Mode 工作方式 | Laser XY linear motion, optional built-in flip mechanism Laser XY线性移动，可选装内置翻板机构 |
One Code Type一维码类型 | Code 39, Code 25,Code 93, Code 128,EAN-13,EAN-8,ISBN etc |
| QR Code Type 二维码类型 | Datamatrix,QR Code,micro QR Code, PDF417,Code 49, Code 16K etc |
QR Code Size 二维码尺寸 | 1.0mmx1.0mm~20mmx20mm (min marking QR code size varies with the laser type) 1.0mmx1.0mm-20mmx20mm(最小可加工二维码尺寸因激光器类型而异) |
Character Type 字符类型 | Support TrueType JSF,SHX, DMF and other fonts 支持TrueType JSF,SHX,DMF等字体 |
| ltem 项目 | P450 |
|---|---|
| Min Character Height 最小字符高度 | 0.1mm-0.4mm (depending on the type of laser) 0.1mm-0.4mm(因激光器类型而异) |
| File Format Support支持文件格式 | Excel, DXF,PLT,TXT |
Position Function定位功能 | Support CCD automatic image, support single point/multi-point positioning mode 支持CCD自动影像，支持单点/多点定位模式 |

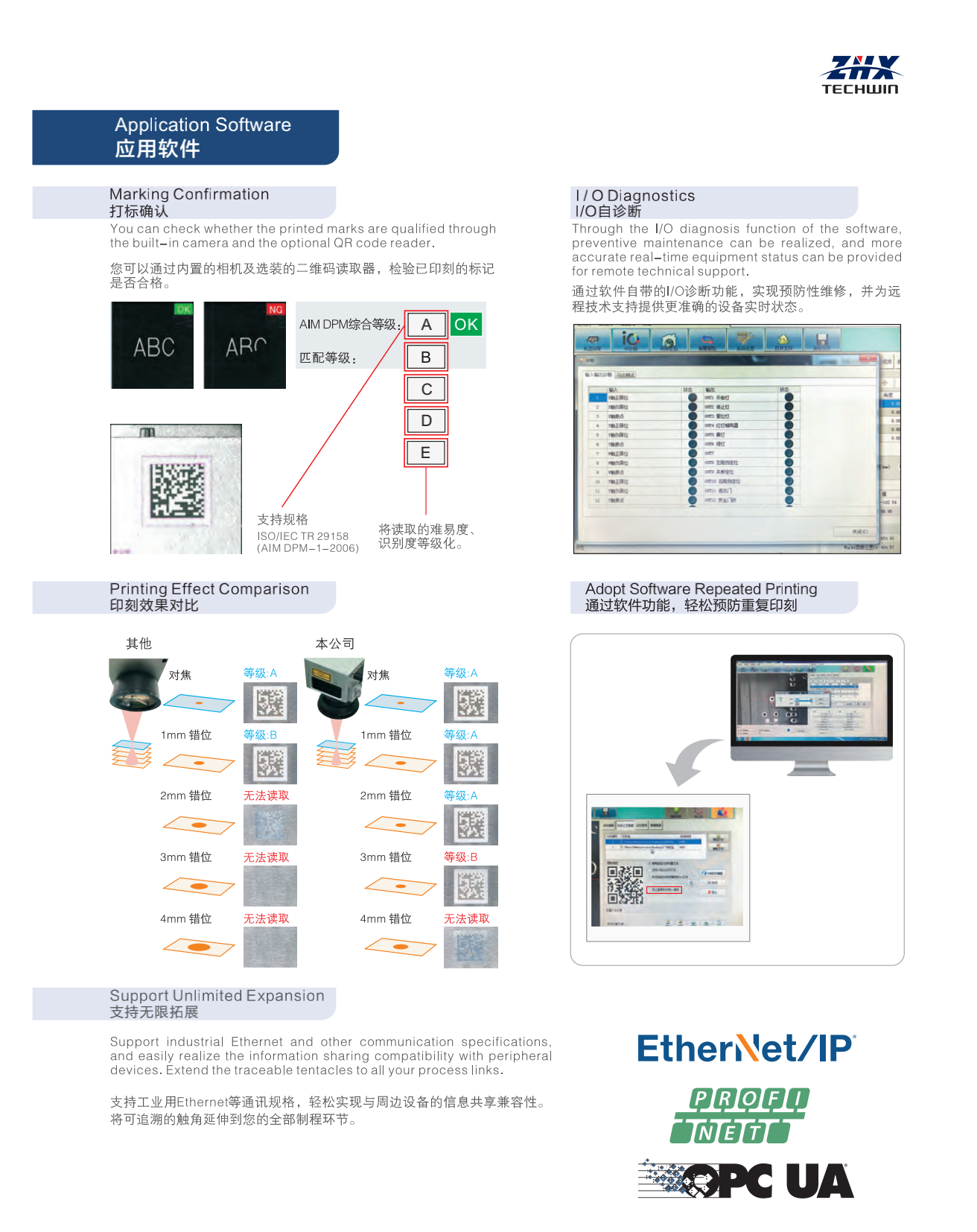

Reading Function读码功能 | Automatic reading of QR code and save data, warning when can not read and generate records自动读取二维码并保存数据，无法读取时预警并生成记录 |
| System Access系统接入 | Support personalized requirements and ERP/MES/SAPsystem interconnection, automatically obtain work order number, product batch number,material code. product name specifications, labeling content and other process information, 支持个性化需求与ERP/MES/SAP等系统互联，自动获取工单号、产品批次号、物料编码、品名规格、标记内容等制程信息 |
| Conveyor Width输送带宽度 | Automatic adjustment according to system setting parameters 依据系统设置参数自动调整 |
| Mobile Mode 移动方式 | cantilever 龙门 |
Power Specification电源规格 | 220V/50Hz,total power-2500W220V/50Hz.总功率=2500W |
Power Protection 电源保护 | UPS backup power supply (optional): supports a power failure of 10 minutes UPS后备电源(可选项)，支持断电运行10分钟 |
Power Protection气压 | 0.5-0.8Mpa |
Overall Dimension 外形尺寸 | (W) 860x(L) 1640x (H)1700mm |
| Weight重量 | 800KG |
