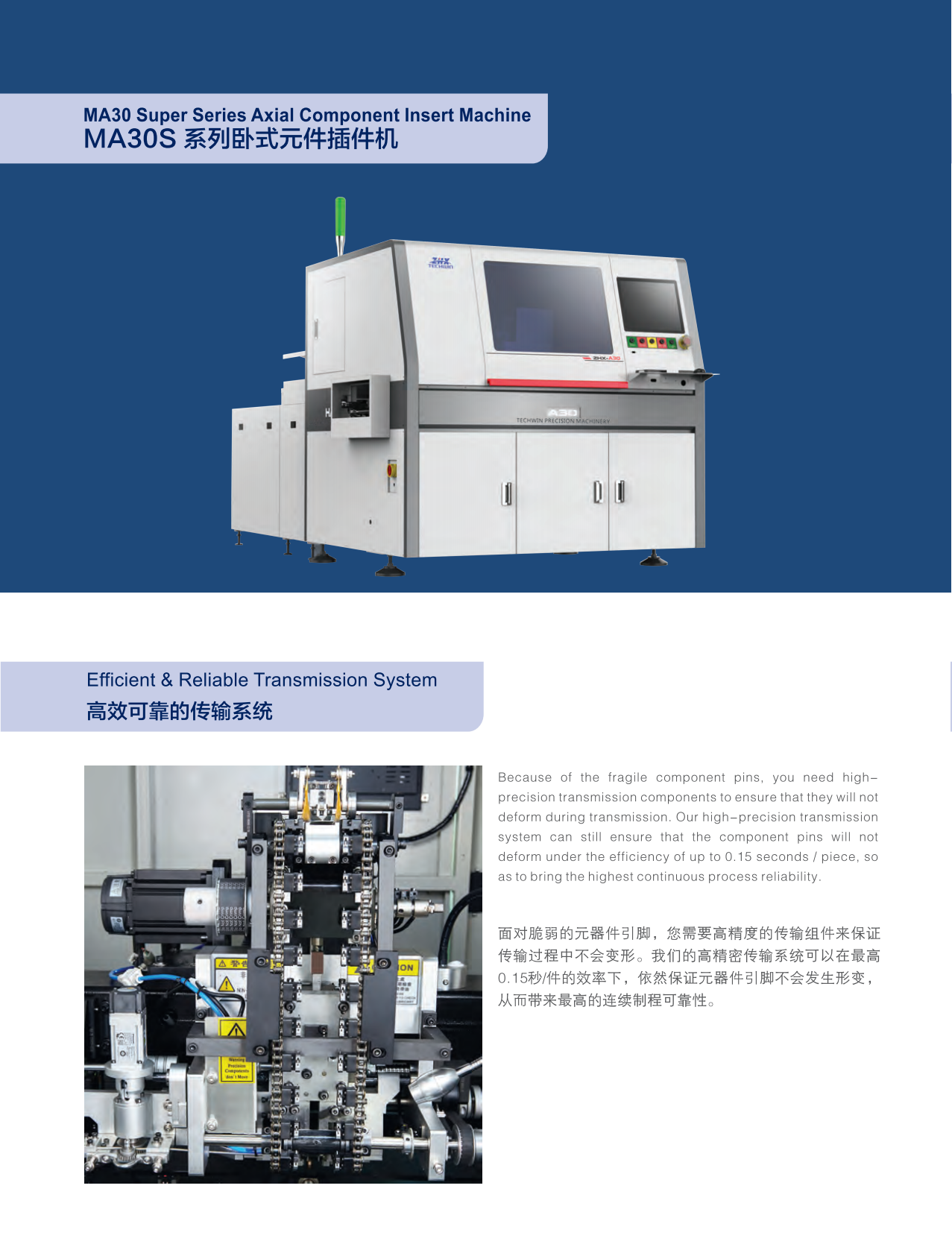

| MA30S | |
|---|---|
| Theoretical Speed 理论速度 | Approx24,000CPH |
| Insertion Direction插件角度 | 4Directio方向0°/90°/180°/270° （360°，0.1°增量lncrement Option） |
| Component Span 元件跨距 | 5mm-22mm |
| Board Size 基板尺寸 | 最小 Min 50mm*50mm 最大Max 400*300mm |
| Process Height进板高度 | 900+20mm |
Board Thickness基板厚度 | 0.79-2.36mm |
Component Style 零件种类 | 电容，晶体管,二极管,电阻,电感,熔断丝等52mm编带卧式封装料 Capacitor,Transistor,Diode,Resistor, Inductance,Fuse Block, Other Axial style 52mm taped components |

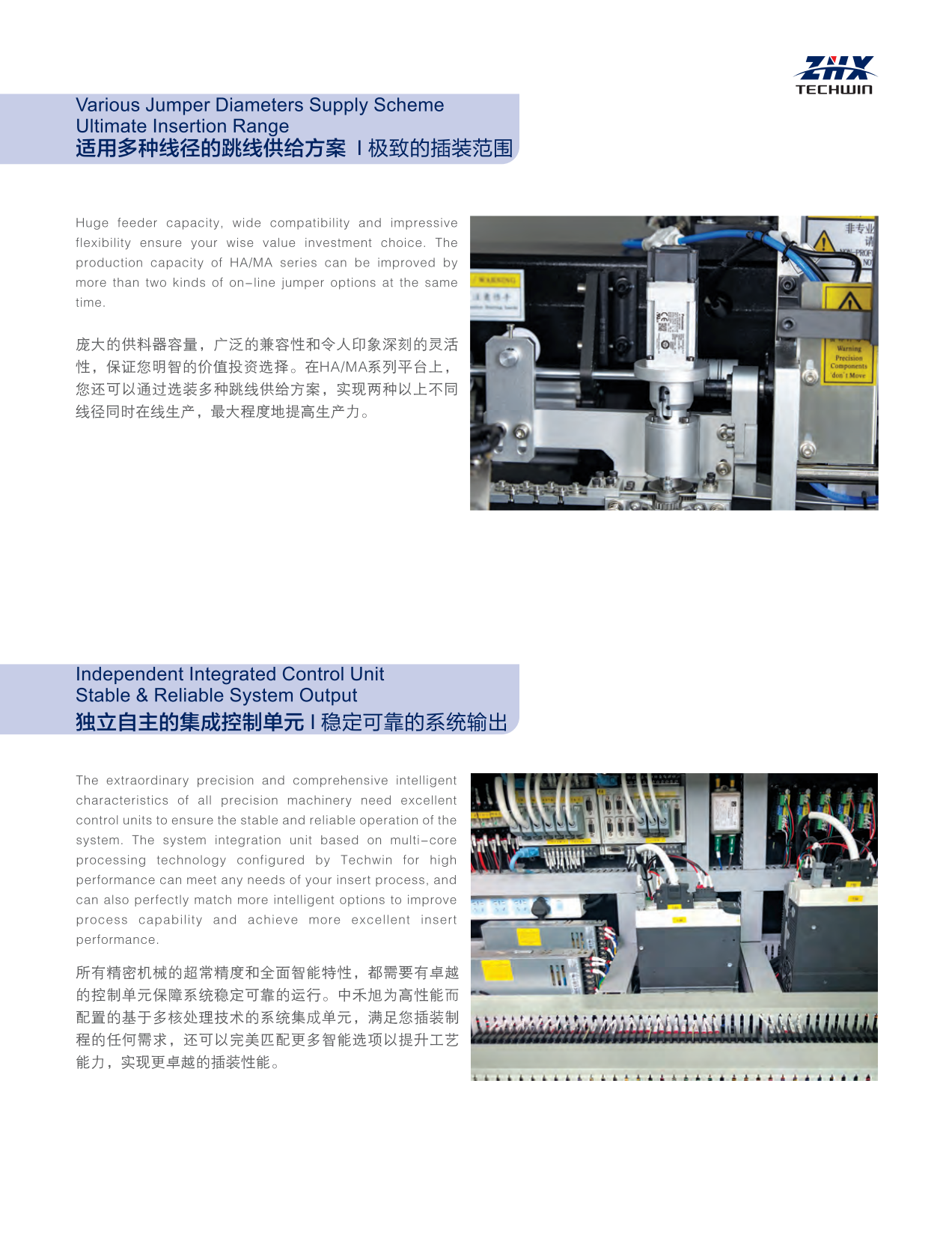

| Jumper 跳线装置 | 独立输送方式Independent Module: Dia 0.5-0.7mm 镀锡铜线 Tin Plated Copper Wire可同时插2种规格的桶装跳线 (可选) 2 kinds of jumper can insert at same time (Option) |
| Cut & Clinch Length剪脚长度 | 1.2-2.2 mm (Adjustable可调) |
Clinch Angle 弯脚角度 | 10°-45°Internal Bending 内弯曲(Adjustable可调) |
| Component Stations 料站数量 | 20 STD 标准(Option 选项 30,40,50,100) |
Machine Dimension 机体尺寸 | Main Body 主机:L1900xW1500xH1700mm |
| Component Station Size 料站尺寸 | L2000xW1000xH1500 mm(20stations) |
| Weight重量 | Main Body 主机: Approx约1200kg |
| Power Requirement供电需求 | AC220V,Single Phase,50/60Hz,4Kw |
| Power Protection 电源保护 | UPS(可选购)15 minutes duration after power cut-off( Option ) |
Air Pressure气压要求 | 0.6 Mpa |
| MA30S | |
|---|---|
| Air Consumption 耗气量 | 0.2M/min |
| Environmental Temperature环境温度 | 20°C±10°C |
Noise Level 噪音水平 | Approx75 dB(A) |
| Position Teaching孔位校正方式 | Vision System视觉系统 Multi Fiducial 多定位点校正(option) |
Component Centering元件归中装置 | STD 标准 Mechanical Centering 机械驱动归中夹 |
| Axis Driving System驱动系统 | AC Servo Motor 伺服马达 |
Chain Driving 链条输送方式 | 双链条双伺服马达驱动 Dual Chain With Dual Servo Motor Drive |
Data Input Style数据输入方式 | USB Port, Excel Format |
| Operation System 操作系统 | Chinese/English Interface (WindowsPlatform) LCD Display 中英文界面，视窗平台，液晶显示 |
Operation Mode 操作模式 | Auto 全自动 / Semi Auto 半自动/ Manual 手动 |
| Worktable Rotation 工作台运转方式 | Clockwise 顺时针/Counter Clockwise 逆时针 Conveyor Track 导轨式 |
| Board Inload 进板方式 | Conveyor Inload Right To Left(Selectable) 导轨自动进板左到右(方向可选) |
| Programming 编程方式 | On-line Teaching 在线手动编程 |
| Feeder 料站 | Air Cylinder Control Feeding 气缸控制下料 |
Mark Identification Mark 识别 | Touch screen operation in front and back 前后触摸屏操作(可选) |
| Feet Material & Diameter元件脚材质和直径 | aluminum铝材质;脚直径:0.6-0.8mm |
1. The dimension data of the machine does not include the extension parts such as signal indication tower.
2. Weight is only the main body weight.
3. Data such as plug-in speed vary according to conditions such as component distribution density.
4, For details, please refer to the specification.
1.机器尺寸数据不包括信号指示塔等外延部分
2.重量只是主体重量
3.插件速度等数据，因元器件分布密度等条件而异
4.详细谓参照《规格说明书》。
